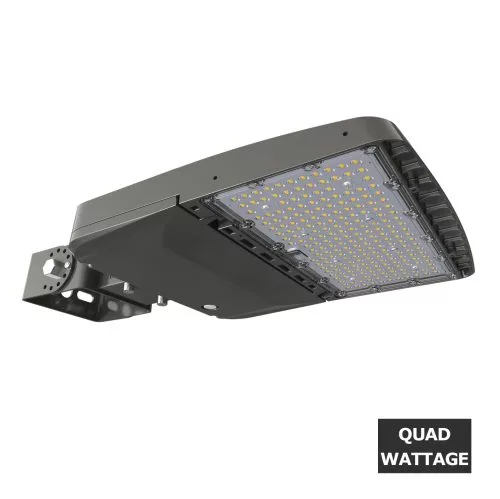

THOR MINI Switchable Area Floodlight

A high-quality image of a modern LED light fixture, suitable for use in an Australian context, with a focus on LED lighting

THOR MINI Switchable Area Floodlight

Model No: LPTSFM30-70
Wattage Adjustable – 30|40|50|70w
Alloy Power-coated Body
56,000 Life Hours
175 – 185 L/pw
5 Year warranty
Asymmetrical beam angle
Excellent street or Area floodlighting
MOUNTING ARE SOLD SEPARATELY – MUST SELECT AN OPTION

View below for further information

SKU LPTSFM30-70 Categories Featured Products, Flood Lights, LED Street Lights

THOR MINI Switchable Area Floodlights (PDF)

Additional Detail

The new THOR MINI Switchable Area Floodlight offer the same high quality componentry and visual aesthetics as the market leading THOR 2 Area Floodlight, although they are now wattage adjustable and will replace the ZEUS 2 Streetlights. An excellent, asymmetrical, cost effective floodlight, available with wattage selection switch offering 30w / 40w / 50w & 70w all in one unit. Also offering up to 185 L/pw efficiency. Die-cast aluminium body, treated with an anti-corrosive powder-coating making it suitable for most outdoor environments. When quality and reliability is a must, the THOR Switchable Area Floods will do the job. IMPORTANT – A mounting bracket must be selected in order to install this fitting. There are two different mounting types available – Spigot & Trunnion.

Accessories	Certifications	Approval
Spigot Mount	SAA	–
Trunnion Mount	EMC / RCM	–
	CE	–

TECHNICAL SPECIFICATIONS

Voltage	Wattage	Power Factor	Beam Angle	Colour	Life Cycle
AC100-277V	30 \| 40 \| 50 \| 70	>0.95	A/Sym / 90d (order)	4,000k	56,000 Hrs
IP Rating	VEET/ESS/REES	CRI	Diffused	Dimmable	Heat Rating
IP66	TBA	>80	Yes	Yes – Standard	-30˚c to +45˚c
